FCBC 48V, 100A Compact (PPM4860C)
ParswaPowerModular PPM 48 Series is SMPS based highly efficient FCBC that provides Regulated 48 vdc to the communication Equipments. The modular design allows step-by-step increase of current capacity by adding or changing modules. This approach offers easy repairing by isolating the Sub-rack, Higher MTBF & redundancy in (N+1) configuration, thus providing very high performance & Cost effective solution.

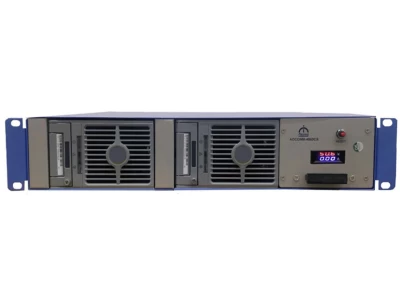

PPM4860C, in particular, is a compact, high power FCBC with only 2U height.
| Wide Input AC Range | 100-300VAC, Single phase |
| Output DC Voltage | 50.0 ± 0.5 V DC (Default) |
| DC Voltage Range | 44V to 56 Volts factory adjustable |
| Output DC Current | Gross 100 /120 Amps (Max.) or 50A/60A (1+1) |
| Current rating per module | 50 Amps / 60 Amps |
| Output current options | 50A / 60A / 100A / 120A |
| Modularity | Hot-swappable, Capacity of 2 modules |
| Operating Temp Range | -10°C to +55°C |
| Monitoring & Alarm | LCD, LED |
| Other Monitoring | SNMP - Made to order |
| Mounting Arrangement | 19 inch mounting |
| Protections | Lightening, Transient & Surge at I/p, Over Voltage disconnect at high AC I/p, Overload at O/p, Short circuit, Output over voltage |
| SPECIAL FEATURES | |
| Power-On Delay – 5 Second Power-On Delay to protect against surge & transients induced when Power Switched On. | |
| External LPT arrangement to ensure quick replacement | |
