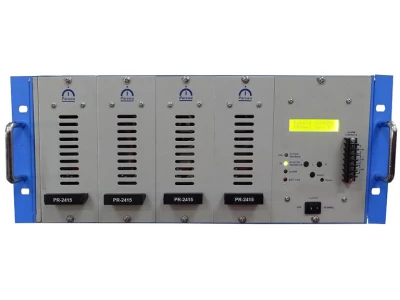

FCBC 48/24V, 25A (PPM4850U-LCD)
PARSWA-POWERMODULAR PPM4850U SERIES is SMPS based highly efficient unit that provides user-selectable 48V/24V outputs. The output detection is auto-sense based, which automatically provides correct o/p voltage to the port where corresponding load is connected. The modular design allows step-by-step increase of current capacity by adding modules. A subrack supports up to a total of 4 plug-in Modules.
| Input AC Range | 164-275VAC |
| Output DC Voltage | 54.2 ± 0.5 V DC/27.2 ± 0.5 V DC (Default) |
| DC Voltage Range |
Output A; 40V to 56V adjustable Output B; 18V to 30V adjustable |
| Output DC Current | Gross 25 Amps (Either 48V OR 24V) (Max.) |
| Current rating per module | 12.5 Amps |
| Output current options | 48V-25 Amps OR 24V-25 Amps |
| Modularity | Hot-pluggable, Capacity of 4 modules |
| Operating Temp Range | -10°C to +55°C |
| Monitoring & Alarm | LCD, LED, Dry Contacts |
| Other Monitoring | SNMP - Made to order |
| Mounting Arrangement | 19 inch mounting |
| Protections | Lightening, Transient & Surge at I/p, Over Voltage disconnect at high AC I/p, Overload at O/p, Reverse battery, Short circuit, Battery LVD |
| SPECIAL FEATURES | |
| Power-On Delay – 5 Second Power-On Delay to protect against surge & transients induced when Power Switched On. | |
| Micro-controller based Comprehensive Monitoring & Alarm | |
| External LPT arrangement to ensure quick replacement | |
