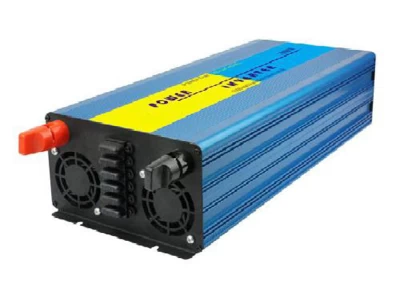

48VDC-230VAC Converter, 2000W
The DACCON series of Inverter delivers clean, regulated AC output from DC input of 48 VDC. DACCON 48230-2000, in specific delivers 230 VAC & 2000 Watts Pure Sine Wave Isolated Output from DC input of 48 VDC.
| Continuous Power Output | 2000W |
| DC Input Voltage | -40VDC to -60VDC |
| AC Output Voltage | 220V +/- 5% rms |
| Frequency | 50 Hz +/- 3% |
| Output Regulation | +/- 5% |
| Efficiency | >85% |
| Alarms | Input Low |
| Protection | Input Low Voltage cut-off, Input High Voltage Protection, Output Overload Protection |
| Operating Temperature | -5°C ... +55°C |
| Storage Temperature | -20°C ... +70°C |
| Weight | 5.5 ± 0.5KGS |
| Dimensions | 390x180x100 mm (LxWxH) |
